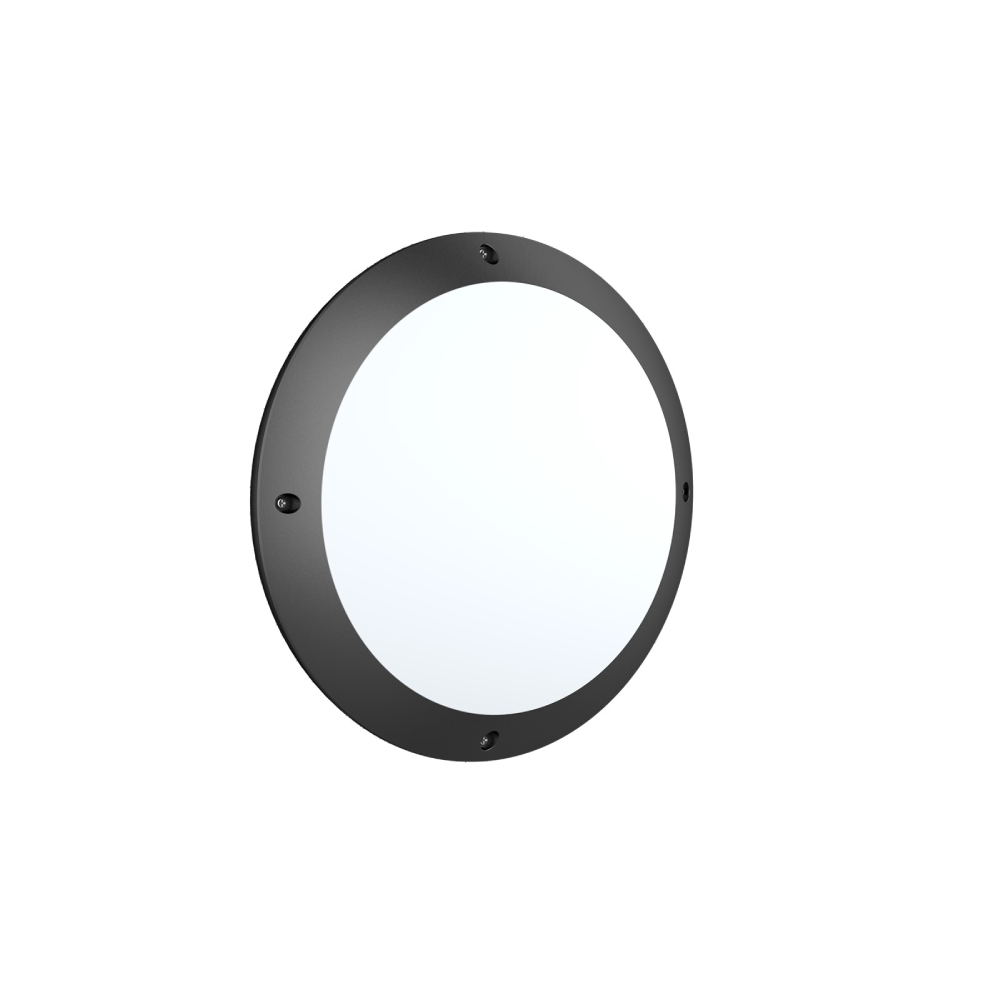

This is an IP65 waterproof LED bulkhead. It has two shapes optional: AL162(Full bezel), and AL163(Eyelid Bezel), both types consist of three parts: Lamp base, LED board, and cover. 2835 SMD high-lumen light source and high transmittance PC cover make a uniform light output. For structure, it’s a full plastic design, ABS material for the lamp base, and PC diffuser, so it has a lighter weight, easier for installation and maintenance. For installation, it has an anti-thief screw design, both edge and back side for cable entry, which could meet more application areas' demand.
Application Areas: It is designed for general lighting applications. It is also widely used for public areas, such as stairways, lobbies, reception, corridors, etc.
| Code No. | AL162-12-12W | AL162-12-14W | AL162-12-18W | AL163-12-12W | AL163-12-14W | AL163-12-18W |
|---|---|---|---|---|---|---|
| Dimension(mm) | Ø300*95 | Ø300*97 | ||||
| Watt(W) | 12W | 14W | 18W | 12W | 14W | 18W |
| Rated Input Voltage(V) | AC230V | |||||
| Input Voltage(V) | AC200-240V | |||||
| Light Source | SMD2835 | |||||
| SDCM | <6 | |||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K | |||||
| CCT Selection DIP Switch | YES | |||||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 1170- 1260 | 1170- 1480 | 1550- 1660 | 936- 1000 | 940- 1180 | 1240- 1320 |
| Non-DIM 3-CCT Luminous Flux (lm) ±5% | 1200- 1270 | 1210- 1490 | 1570- 1680 | 960- 1020 | 960- 1190 | 1250- 1340 |
| CRI | ≥80 | |||||
| Beam Angle (°) | 120° | |||||
| LED Driver | Built-in | |||||
| Sensor | Adjustable sensor | |||||
| Emergency Kits | Yes | |||||
| Electrical Class | Class Ⅱ | |||||
| Ingress Protection (IP Rating) | IP65 | |||||
| Impact Resistance (IK Rating) | IK08 | |||||
| Product Finishing(Base) | White RAL 9016/Black RAL9005 | |||||
| Materials of Optics | PC | |||||
| Materials of Housing | ABS | |||||
| Lifetime (hr) | 50,000h | |||||
| Glow wire test (C ) | 650C | |||||
| Operating Temp. (C ) | -20C ~45C | |||||
| Storage Temp. (C ) | -20C ~65C | |||||
| Installation | Surface mount / Wall mount | |||||
