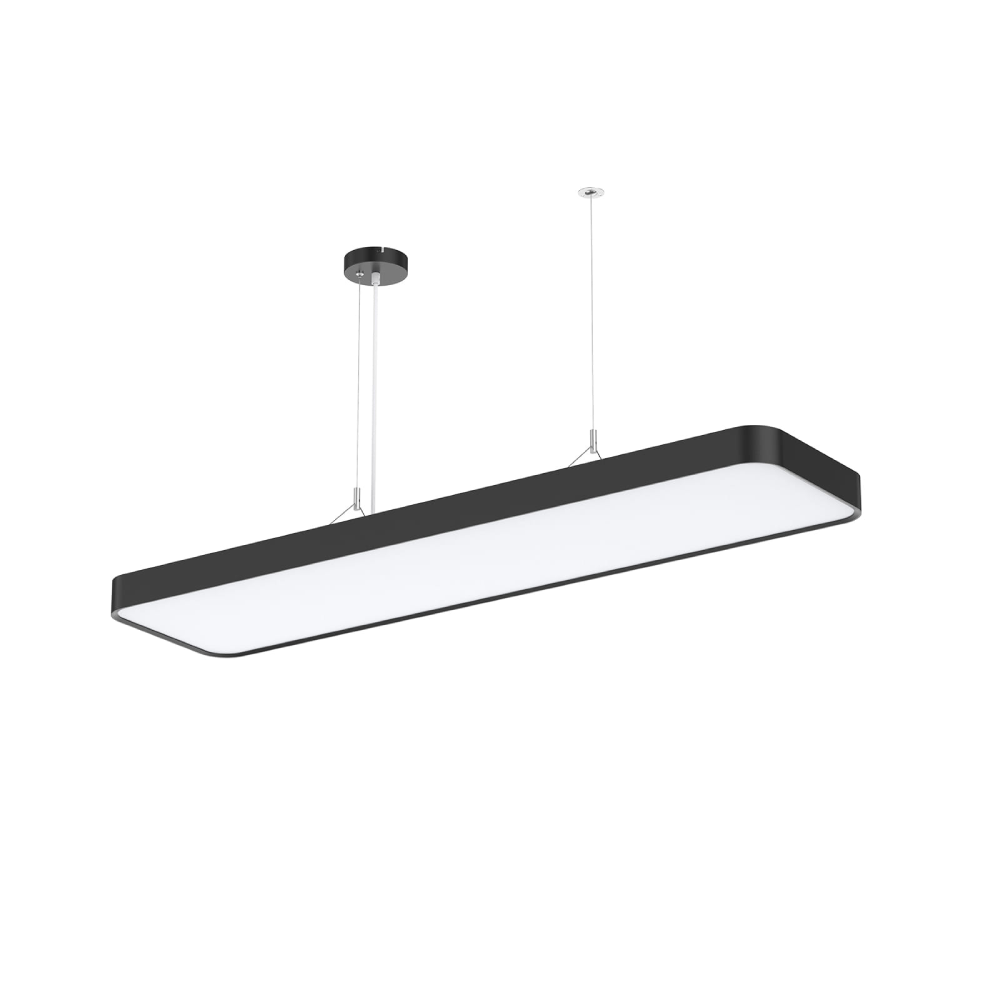

This is a rectangular large-size ceiling lamp. It adopts a high-lumen SMD LED light source, milky diffuser, and prismatic diffuser optional, The large lighting area and low glare design make a softer and uniform light output. Aluminum housing provides excellent thermal management. CCT adjustable and wattage adjustable are optional, surface mounting and pendant installation meet more application demands.
Application Areas: It is designed for general lighting applications in offices, reception, display area, etc.
| Code | AL194-36W | AL194-42W | AL194-50W |
|---|---|---|---|
| Dimension(mm) | 1200*300*72 | ||
| Watt(W) | 36W | 42W | 50W |
| Rated Input Voltage | AC220-240V | ||
| Input Voltage | AC198-264V | ||
| Light Source | SMD | ||
| SDCM | <6 | ||
| CCT(K) | 1-CCT: 3000K/4000K || 2-CCT: 3000K + 4000K | ||
| CCT Selection DIP Switch | Yes | ||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% CRI80 (Prismatic diffuser) | 4200-4500 | 4700-5100 | 5350-5850 |
| DIM 1-CCT Luminous Flux (lm) ±5% CRI80 (Prismatic diffuser) | 4200-4500 | 4900-5200 | 5700-6200 |
| Non-DIM 2-CCT Luminous Flux (lm) ±5% CRI80 (Prismatic diffuser) | 4200-4500 | 4700-5100 | 5350-5850 |
| DIM 2-CCT Luminous Flux (lm) ±5% CRI80 (Prismatic diffuser) | 4200-4500 | 4900-5200 | 5700-6200 |
| Non-DIM 1-CCT Luminous Flux (lm) ±5% CRI80 (Prismatic diffuser) | 4800-5200 | 5500-5950 | 6300-6900 |
| DIM 1-CCT Luminous Flux (lm) ±5% CRI80 (Prismatic diffuser) | 4800-5200 | 5650-6100 | 6800-7300 |
| Non-DIM 3-CCT Luminous Flux (lm) ±5% CRI80 (Prismatic diffuser) | 4800-5200 | 5500-5950 | 6300-6900 |
| DIM 3-CCT Luminous Flux (lm) ±5% CRI80 (Prismatic diffuser) | 4800-5200 | 5650-6100 | 6800-7300 |
| CRI | ≥80 | ||
| Beam Angle (°) | 80°(Prismatic diffuser) & 110°(Milky diffuser) | ||
| UGR | UGR<19 (Prismatic diffuser: 36W & 42W) | ||
| UGR<22 (Prismatic diffuser: 50W) | |||
| UGR<22 (Milky diffuser) | |||
| LED Driver | Driver built-in | ||
| Dimming Option | DALI | ||
| Electrical Class | Class I | ||
| Ingress Protection(IP Rating) | IP20 | ||
| Product Finishing | White RAL9016 & Black RAL9005 | ||
| Optics Material | PS | ||
| Housing Material | Aluminium | ||
| Lifetime (hr) | 50,000H | ||
| Glow wire test (°C) | 650°C | ||
| Operating Temp.(°C) | -20°C~45°C | ||
| Storage Temp.(°C) | -20°C~60°C | ||
| Installation | Surface mount & Pendant | ||
