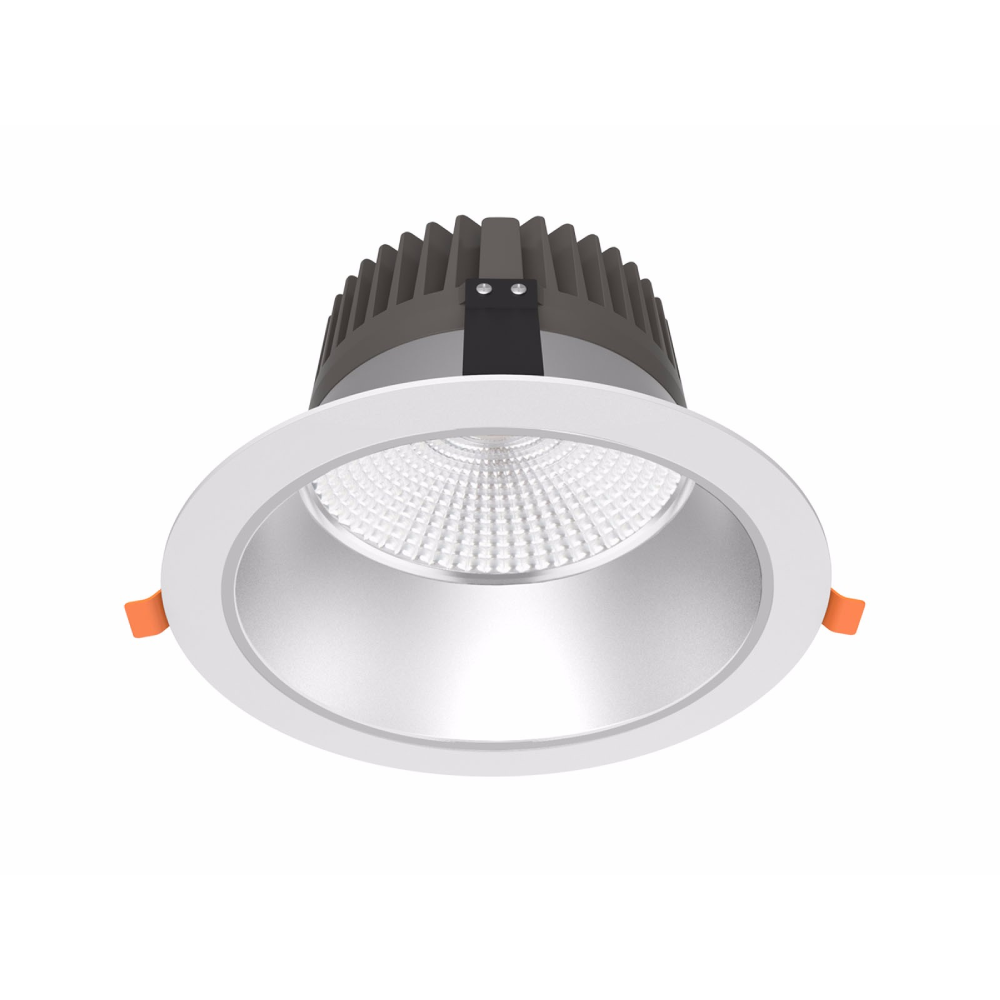

new design anti-glare CL94 led downlight adopts Citizen COB chip collocating with deep reflection cup. This unique design skillfully prevents the human eye's contact with the light sources directly, making the light more soft, UGR<19. Meanwhile, the light efficiency reaches 90lm/w with perfect accent lighting performance. That makes it the priority selected product for commercial lighting.
V shape cooling fins heat sink design increases the interface between heat sink and air, which makes the heat dissipating performance outstanding and extends the service life of the downlight. Application: Suitable for commercial and residential applications like offices, supermarkets, shops, schools, hotels, restaurants, workshops, warehouses, homes, etc.
| Code | LEDChip | Wattage | BeamAngle | CCT | Lumens | Dimension | Download |
|---|---|---|---|---|---|---|---|
| UP-CL94-3-13W | CITIZEN | 13W | 45° | 2700K,3000K,4000K,5000K | 950-1000lm | Ø110*100mm cutout 95-100mm | Specification |
| UP-CL94-6-25W | CITIZEN | 25W | 36° | 2700K,3000K,4000K,5000K | 2250-2550lm | Ø190*127mm cutout 165-180mm | Specification |
| UP-CL94-8-35W | CITIZEN | 35W | 45° | 2700K,3000K,4000K,5000K | 2900-3350lm | Ø230*140mm cutout 205-220mm | Specification |
