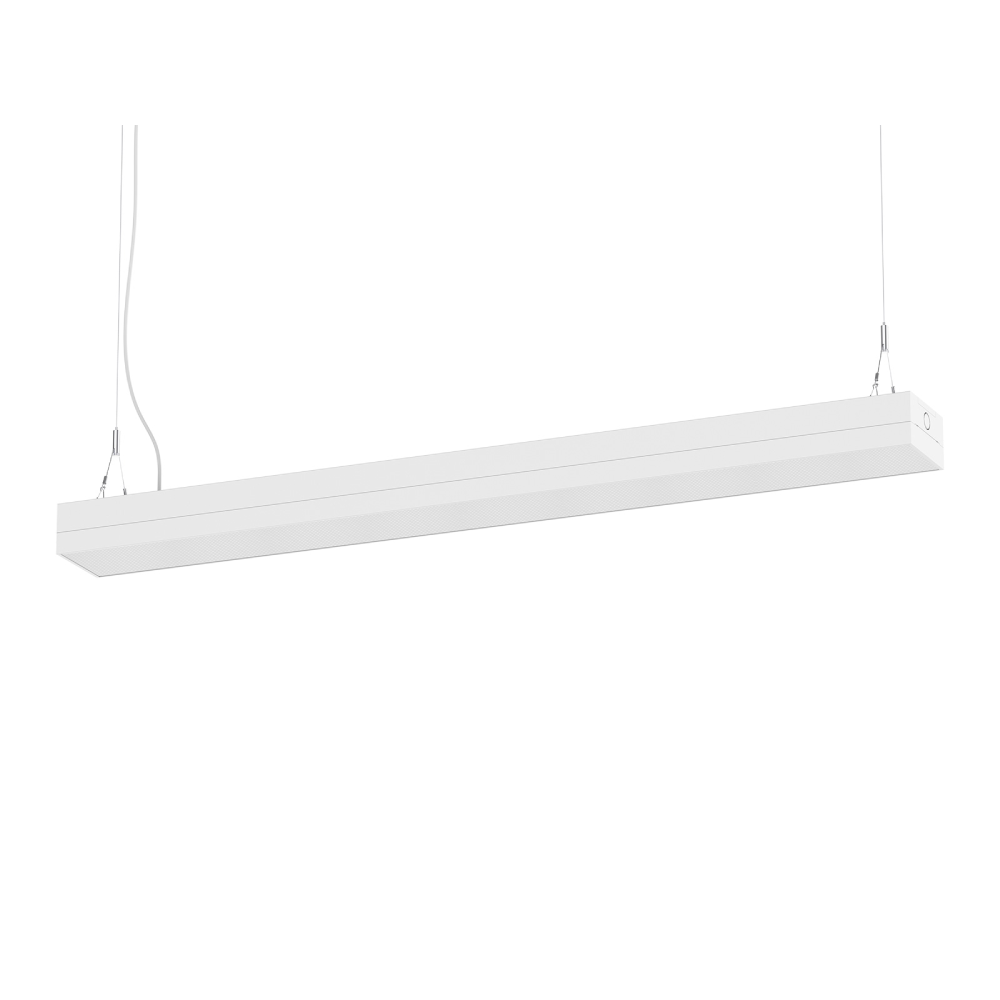

This batten light is a new seamless splicing design. It adopts a high-lumen SMD LED chip and prism lamp shade to offer a uniform light output. Aluminum housing ensures a strong structure and provides great thermal management. Screwless design and buckle assembly make an easy and convenient installation. Functions: CCT adjustable, splicing for both surface mounted and pendant installations.
LED batten light features:
| Code No. | DB105A-600-24W-C3 | DB105A-1200-38W-C3 | DB105A-1500-55W-C3 |
|---|---|---|---|
| Dimension(mm) | 600×120×70 | 1200×120×70 | 1500×120×70 |
| Watt(W) | 24W | 38W | 55W |
| Rated Input Voltage(V) | AC220-240V | ||
| Input Voltage(V) | AC200-264V | ||
| LED Module Input | DC36V 600mA | DC36V 1050mA | DC36V 1500mA |
| Light Source | SMD | ||
| SDCM | <6 | ||
| CCT(K) | 3-CCT: 3000K/ 4000K/5700K | ||
| CCT Selection DIP Switch | YES | ||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 2700-3000 | 4500-5000 | 6500-7000 |
| CRI | Ra>80 | ||
| Beam Angle (°) | 100 ° | ||
| LED Driver | Built-in | ||
| Electrical Class | Class I | ||
| Ingress Protection (IP Rating) | IP20 | ||
| Product Finishing(Base) | White RAL9016 | ||
| Materials of Optics | PMMA | ||
| Materials of Housing | Aluminum | ||
| Lifetime (hr) | 50,000h | ||
| Glow wire test (℃ ) | 650℃ | ||
| Operating Temp. (℃ ) | -20℃ ~45℃ | ||
| Storage Temp. (℃ ) | -20℃ ~65℃ | ||
| Installation | Surface mount / Pendant | ||
