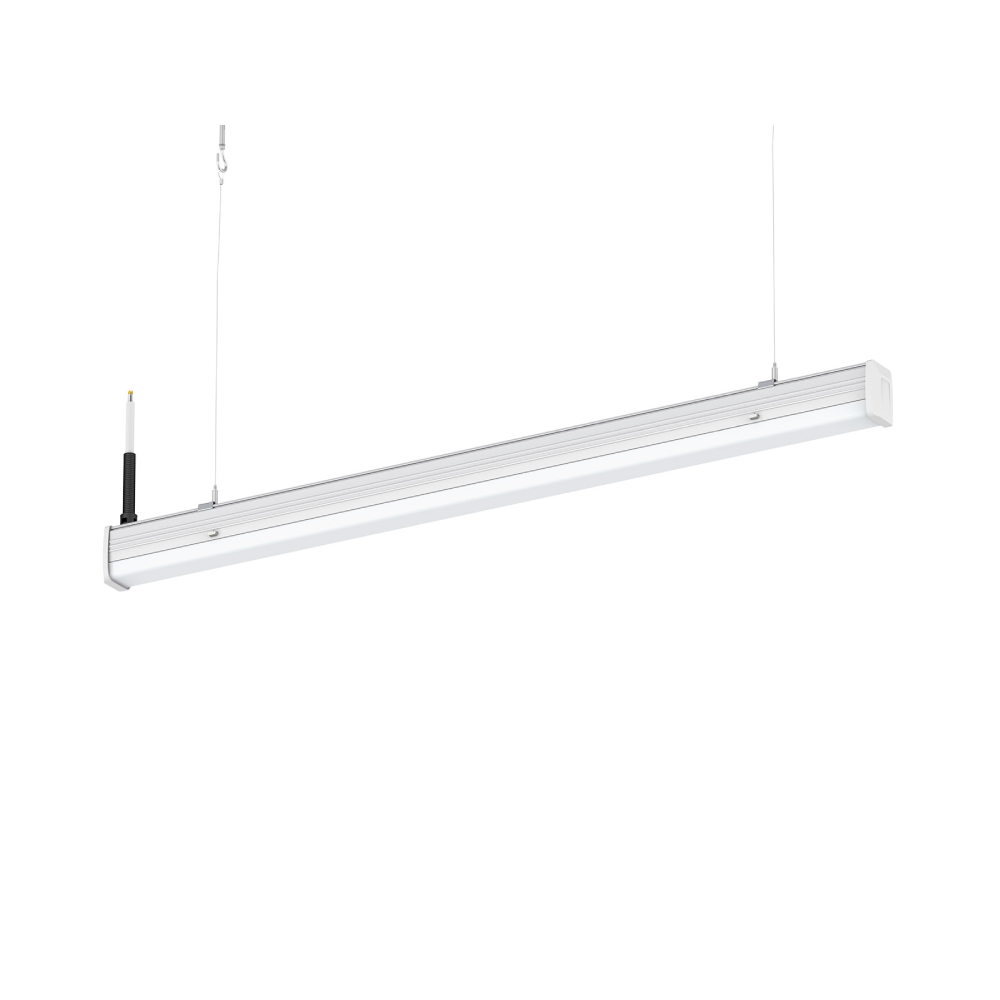

DB128 LED Trunking System

The LED Trunking System is an energy-efficient, low maintenance and a perfect alternative to traditional linear light in a variety of industrial, commercial and light assembly applications. It adopts separated module design with track, linear light and functional modules. For trunking rail, 5-wire/8-wire for selections, splicing with L/T/X node connector and different entry hole can support a flexible installation, so it is the optimal solution for conventional lighting systems and also excellent for new installations due to its low installation cost.

• It adopts separated module design with track, linear light and functional modules.
• Watt: 40W/60W/74W can be selected by DIP switch.
• DB128A is lens design, DB128B is PC cover design.
• High lumen efficiency, 160lm/W for lens version, 130lm/W for PC version.
• Beam angle options: 24 degree, 60 degree, 90 degree, 120 degree, asymmetric-polarization 25 degree，symmetric-
• polarization 25 degree.
• Track wiring: 3 circuits with 5-wire/8-wire.
• Dimming way: DALI dimming.
• Emergency: Internal battery supply.
• Functional module: Sensor module for microwave sensor&daylight sensor，track spotlight.
• It can be connected by L-shape, T-shape and X-shape node connector to reach different variant demands.
• Installation ways: Surface mounting, steel wire suspension, rod suspension and chain suspension.
• Wire entry ways: Backward of the track/side on junction box.

Application areas: This special linear light is widely used in shopping mall, office, automobile 4s shops, warehouse etc.
