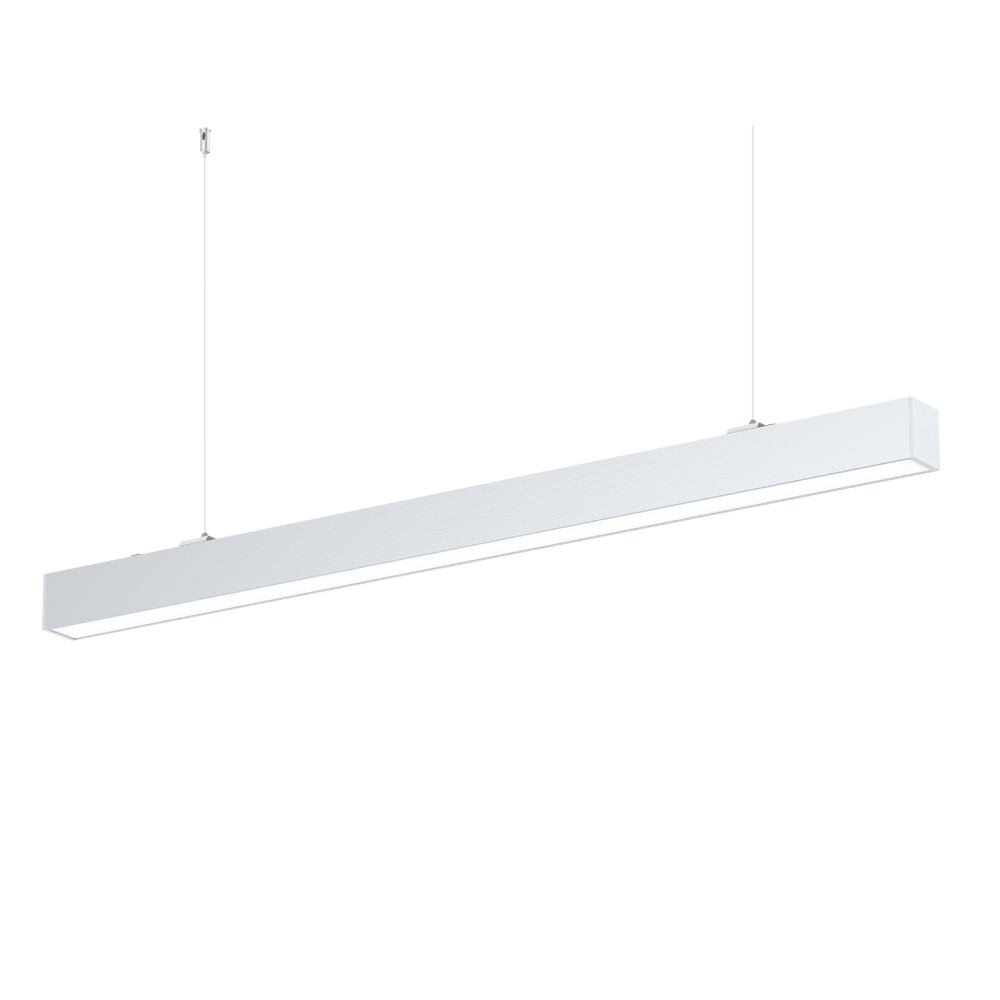

DB158 is an Eco linear design. The lamp adopts high lumen 2835SMD light source, the high transmittance PS cover leads a high light efficiency and uniform light output. Besides, it is also a quick-install design, fast connector, loop in/out design, snap-on installation, which is highly saved mount time and better for maintenance
Application Areas: It is widely used in workshop, warehouse, parking lot, factories, shopping mall, supermarket etc.
| Code No. | DB158-1200-30W DB158B-1200-30W | DB158-1200-40W DB158B-1200-40W | DB158-1500-40W DB158B-1500-40W | DB158-1500-60W DB158B-1500-60W |
|---|---|---|---|---|
| Dimension(mm) | 1200*58.6*70 | 1500*58.6*70 | ||
| Watt(W) | 30W | 40W | 40W | 60W |
| Rated Input Voltage(V) | AC 230V | |||
| Input Voltage(V) | AC 220-240V | |||
| Light Source | SMD 2835 | |||
| SDCM | < 6 | |||
| CCT(K) | 1-CCT: 3000K / 4000K / 5000K / 5700K || 3-CCT: 3000K + 4000K + 5700K | |||
| CCT Selection DIP Switch | YES | |||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% (Silver / white lamp | 3000-3400 | 4000-4400 | 4000-4400 | 6000-6600 |
| DIM 1-CCT Luminous Flux (lm) ±5% (Silver / white lamp | ||||
| Non-DIM 3-CCT Luminous Flux (lm) ±5% (Silver / white lamp | 3000-3400 | 4000-4400 | 4000-4400 | 6000-6600 |
| DIM 3-CCT Luminous Flux (lm) ±5% (Silver / white lamp | ||||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% (Black lamp body) | 2500-3000 | 3300-3800 | 3800-4200 | 5300-6000 |
| DIM 1-CCT Luminous Flux (lm) ±5% (Black lamp body) | ||||
| Non-DIM 3-CCT Luminous Flux (lm) ±5% (Black lamp body) | 2500-3000 | 3300-3800 | 3800-4200 | 5300-6000 |
| DIM 3-CCT Luminous Flux (lm) ±5% (Black lamp body) | ||||
| CRI | Ra80 | |||
| Beam Angle (°) | 110° | |||
| LED Driver | Built-in | |||
| Dimming Option | DALI | |||
| Emergency Kits | YES | |||
| Electrical Class | Class I | |||
| Ingress Protection (IP Rating) | IP20 | |||
| Product Finishing(Base) | Anodized natural color / White(RAL9016) / Black(RAL9005) | |||
| Materials of Optics | PS | |||
| Materials of Housing | Aluminum | |||
| Lifetime (hr) | 50,000H | |||
| Glow wire test (C ) | 750°C | |||
| Operating Temp. (C ) | -20°~40° | |||
| Storage Temp. (C ) | -20°~65° | |||
| Installation | Surface mount / Pendant | |||
| Code No. | DB158-1200-30W DB158B-1200-30W | DB158-1200-40W DB158B-1200-40W | DB158-1500-40W DB158B-1500-40W | DB158-1500-60W DB158B-1500-60W |
|---|---|---|---|---|
| Dimension(mm) | 1200*58.6*70 | 1500*58.6*70 | ||
| Watt(W) | 30W | 40W | 40W | 60W |
| Rated Input Voltage(V) | AC 230V | |||
| Input Voltage(V) | AC 220-240V | |||
| Light Source | SMD 2835 | |||
| SDCM | < 6 | |||
| CCT(K) | 1-CCT: 3000K / 4000K / 5000K / 5700K || 3-CCT: 3000K + 4000K + 5700K | |||
| CCT Selection DIP Switch | YES | |||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% (Silver / white lamp body) | 2600-3000 | 3500-3900 | 3500-3900 | 5200-5600 |
| DIM 1-CCT Luminous Flux (lm) ±5% (Silver / white lamp body) | ||||
| Non-DIM 3-CCT Luminous Flux (lm) ±5% (Silver / white lamp body) | 2600-3000 | 3500-3900 | 3500-3900 | 5200-5600 |
| DIM 3-CCT Luminous Flux (lm) ±5% (Silver / white lamp body) | ||||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% (Silver / white lamp body) | 2200-2600 | 2900-3300 | 3300-3700 | 4600-5300 |
| DIM 1-CCT Luminous Flux (lm) ±5% (Silver / white lamp body) | ||||
| Non-DIM 3-CCT Luminous Flux (lm) ±5% (Silver / (Black lamp body) | 2200-2600 | 2900-3300 | 3300-3700 | 4600-5300 |
| DIM 3-CCT Luminous Flux (lm) ±5% (Silver / (Black lamp body) | ||||
| CRI | Ra80 | |||
| Beam Angle (°) | 90° | |||
| LED Driver | Built-in | |||
| Dimming Option | DALI | |||
| Emergency Kits | YES | |||
| Electrical Class | Class I | |||
| Ingress Protection (IP Rating) | IP20 | |||
| Product Finishing(Base) | Anodized natural color / White(RAL9016) / Black(RAL9005) | |||
| Materials of Optics | PC | |||
| Materials of Housing | Aluminum | |||
| Lifetime (hr) | 50,000H | |||
| Glow wire test (C ) | 750° | |||
| Operating Temp. (C ) | -20°~40° | |||
| Storage Temp. (C ) | -20°~65° | |||
| Installation | Surface mount / Pendant | |||
