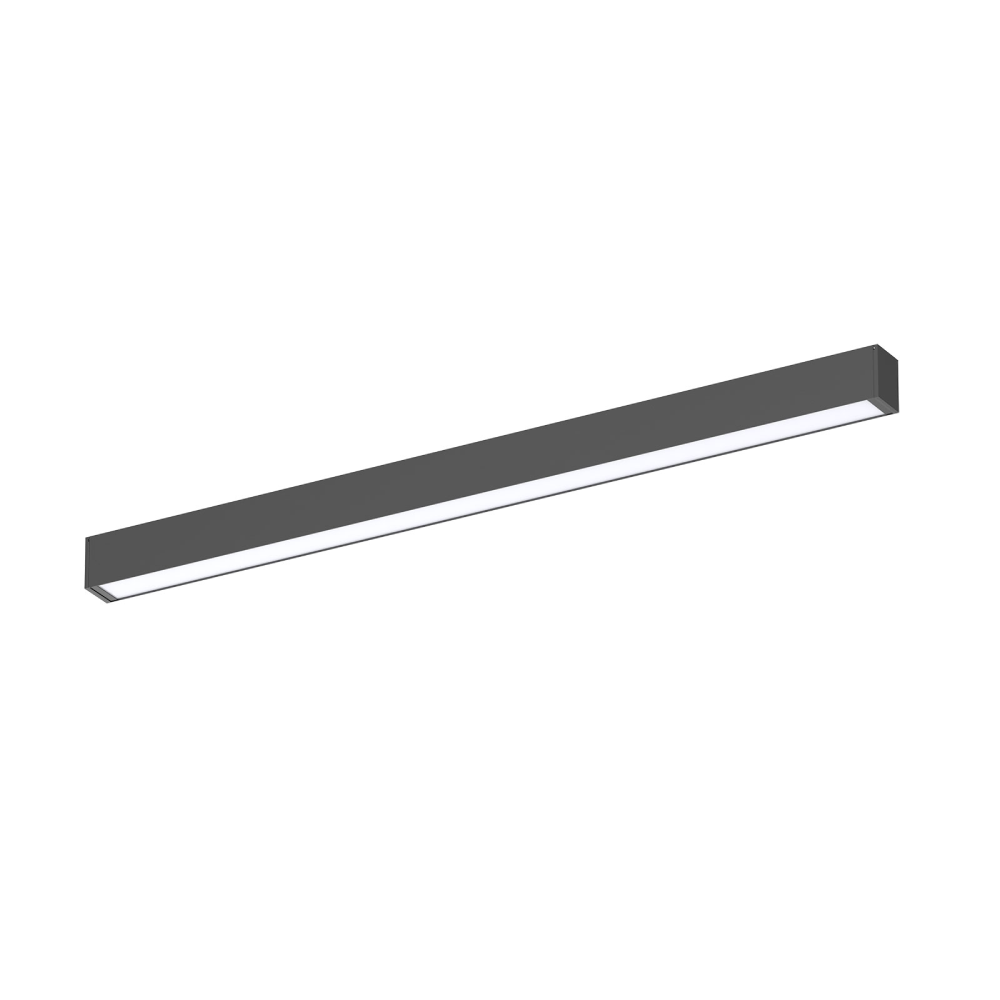

This linear light is designed for indoor and semi-outdoor applications with an IP54 waterproof level. It adopts a high-lumen SMD light source to reach high-lumen output, and high transmittance PC shade provides a uniform light effect. Besides, this linear light supports both pendant and surface mount installation, the ceiling mounting brackets adopt a shrapnel spring-type design, which can be installed easily and quickly. The straight splicing design also offers more possibility for wider application lighting design. AL6063 aluminium body makes a good heat dissipation which ensures a better and longer lifespan.
Application Areas: It’s designed for both indoor and semi-outdoor applications, widely used in warehouses, supermarkets, parking, offices, etc.
| Code | DB163-1200-32W | DB163-1500-38W |
|---|---|---|
| Dimension(mm) | 1215*57*76 | 1515*57*76 |
| Watt(W) | 32W | 38W |
| Rated Input Voltage | AC220-240V | |
| Input Voltage | AC198-264V | |
| Light Source | SMD | |
| SDCM | <6 | |
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K | |
| CCT Selection DIP Switch | YES | |
| Non-DIM 1-CCT Luminous Flux (lm) ±5% CRI80 (White color ) | 3600-4200 | 4300-5200 |
| DIM 1-CCT Luminous Flux (lm) ±5% CRI80 (White color ) | 3600-4200 | 4300-5200 |
| Non-DIM 3-CCT Luminous Flux (lm) ±5% CRI80 (White color ) | 3600-4200 | 4300-5200 |
| DIM 3-CCT Luminous Flux (lm) ±5% CRI80 (White color ) | 3600-4200 | 4300-5200 |
| Remark: If with Black/Silver color, the lumen will decrease by around 4% | ||
| CRI | 80 | |
| Beam Angle (°) | 110° | |
| LED Driver | Built-in | |
| Dimming Option | DALI / 1- 10V | |
| Electrical Class | Class I | |
| Ingress Protection(IP Rating) | IP54 | |
| Product Finishing | White RAL9016, Black RAL9005, Silver RAL9006 | |
| Optics Material | PC | |
| Housing Material | Aluminium+PC | |
| Lifetime (hr) | 50,000h | |
| Glow wire test (°C) | 750°C | |
| Operating Temp.(°C) | -20°C-45°C | |
| Storage Temp.(°C) | -20°C~65°C | |
| Installation | Surface mount / Pendant | |
