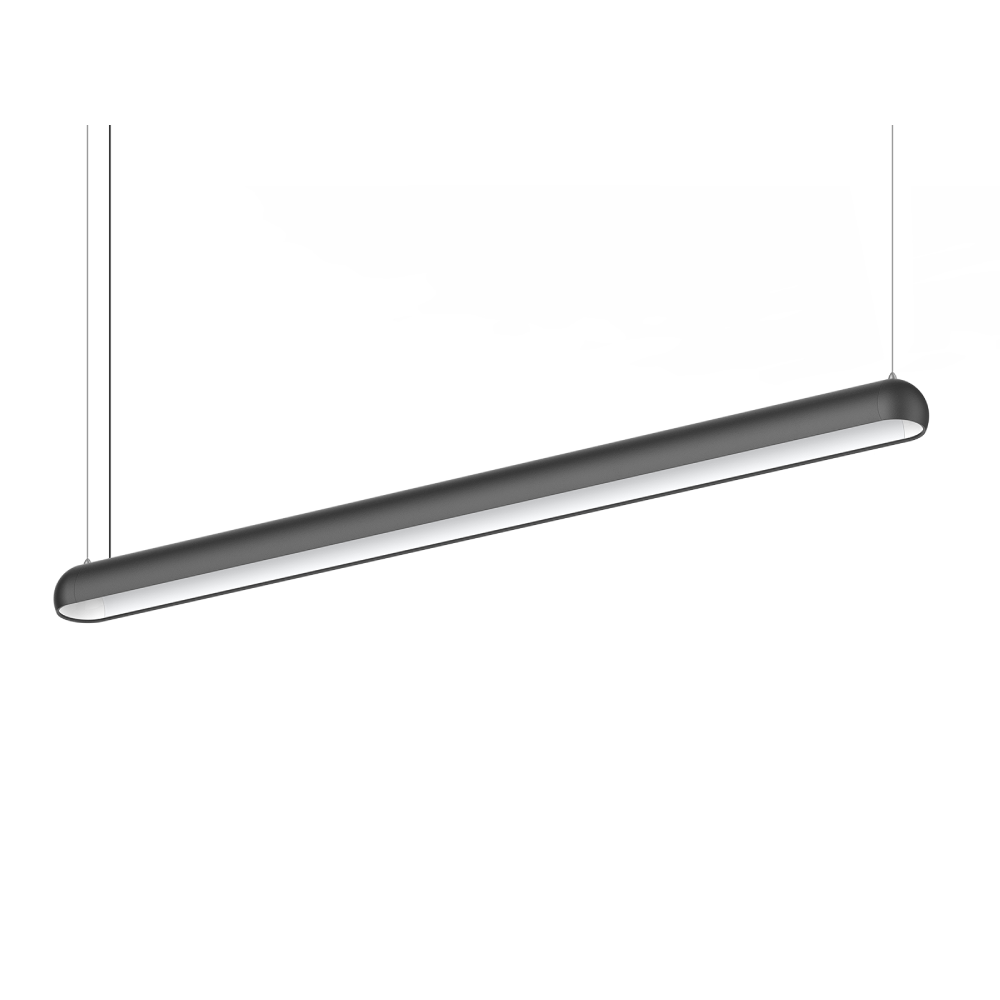

DB60 is a new semicircle structure linear lamp with light that goes both up and down sides; Adopts high lumen output SMD chip and high-efficiency flicker-driver to produce a stable performance; Aluminum housing ensures excellent heat dissipation; the combination of lens and reflector makes UGR<19.
Linear LED Light Function:
▪ UGR<19
▪ Double-side luminaire.
▪ Aluminum housing ensures excellent heat dissipation.
▪ Flicker-free driver solution.
▪ High luminous flux.
| Code | DB60-1200-40W | DB60-1600-60W | ||
|---|---|---|---|---|
| Watt(W) | 40W | 60W | ||
| Dimension(mm) | 1206*81*61 | 1652*81*61 | ||
| Rated Input Voltage(V) | AC230V | |||
| Input Voltage(V) | AC220-240V | |||
| LED | SMD | |||
| SDCM | <6 | |||
| CCT(K) | 1-CCT: 3000K / 4000K / 5000K / 5700K | |||
| Luminous Flux (lm) ±5% |
1-CCT | Non-DIM | 4000~4800 | 6000~7200 |
| DIM | – | – | ||
| 3-CCT | Non-DIM | – | – | |
| DIM | – | – | ||
| CRI | >80 | |||
| Beam Angle (°) | Up 110° / Down 60° | |||
| LED Driver | Built-out | |||
| Protection Class | Class Ⅰ | |||
| IP Rating | IP20 | |||
| IK Rating | IK03 | |||
| Finishing color | White RAL 9016 / Black RAL 9005 | |||
| Material | PC / Aluminium | |||
| Lifetime (hr) | 50,000h | |||
| Glow wire test (°C) | 750℃ | |||
| Operating Temp.(°tC) | -20℃~45℃ | |||
| Storage Temp.(°C) | -20℃~65℃ | |||
| Installation | Pendant | |||
