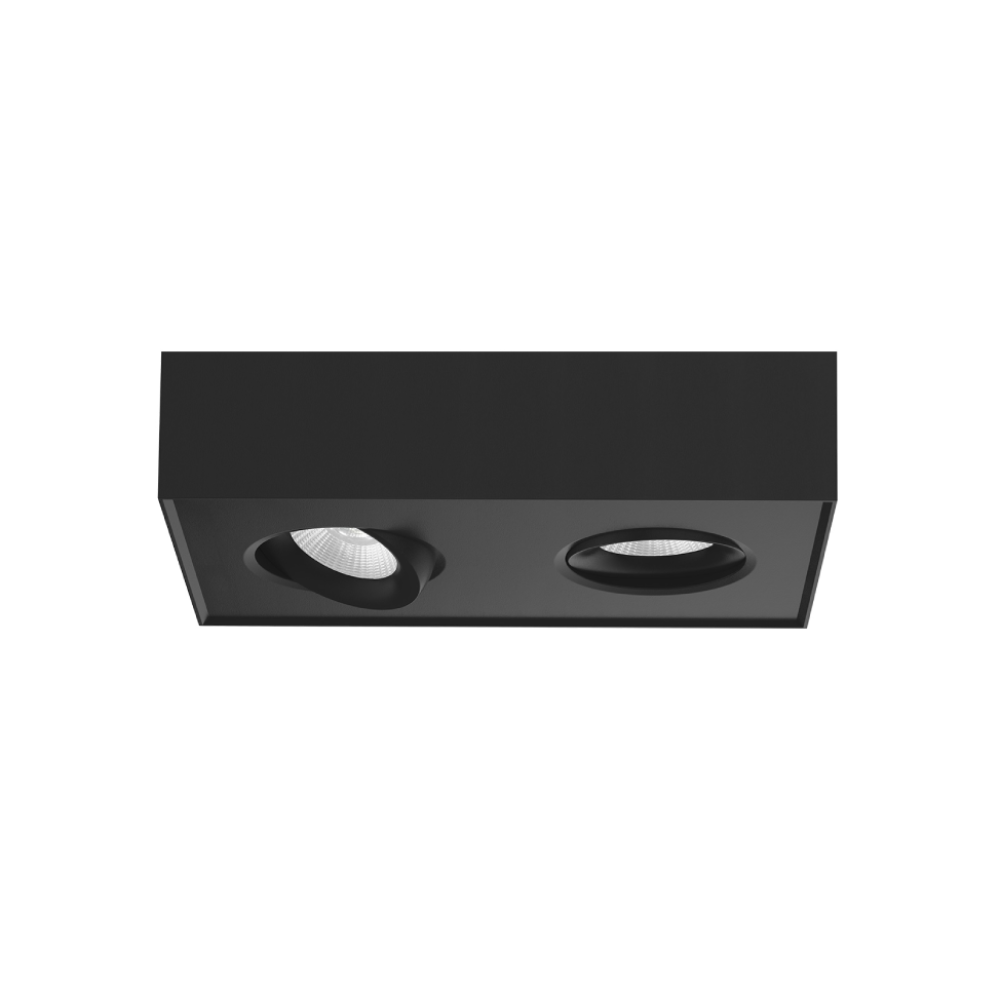

This is a gyro as design cube downlight, clean outlooking without any screws. It adopts a high-lumen COB LED light source, and high CRI90 CRI95 options, also available as a Dim to Warm version (2000K~3000K). The aluminum housing provides great thermal management, which ensures a long lifespan. The luminaire is tilted 23° in all directions (360°), perfectly meeting the demands of different lighting angles. Slide mounting design makes for easier installation and maintenance.
| Code No. | DL259-8W-D | DL259-16W-D | DL259-16W-DW | DL259-8W-DW |
|---|---|---|---|---|
| Dimension(mm) | 135*135*60 | 224*135*60 | 224*135*60 | 135*135*60 |
| Watt(W) | 8W | 16W | 16W | 8W |
| Rated Input Voltage(V) | AC230V | |||
| Input Voltage(V) | AC200-240V | |||
| LED Module Input | DC33-38V | |||
| Light Source | COB | |||
| SDCM | <6 | |||
| CCT(K) | 1-CCT: 2700K/3000K/4000K/5000K | WW: 2000-3000K | ||
| CCT Selection DIP Switch | NO | YES | ||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 600-850 | 1400-1600 | - | |
| DIM 1-CCT Luminous Flux (lm) ±5% | 570-800 | 1350-1550 | - | |
| DIM Change Luminous Flux (lm) ±5% | 880-950 | 350-450 | ||
| CRI | 90/95 | 90-97 | ||
| Beam Angle (°) | 15º30º36º60º | 15º24º36º60º | ||
| LED Driver | Built-in | |||
| Dimming Option | Triac | |||
| Electrical Class | Class I | |||
| Ingress Protection (IP Rating) | IP20 | |||
| Product Finishing(Base) | White/Black/Silver | |||
| Materials of Optics | PC | |||
| Materials of Housing | PC/Die-casting | |||
| Lifetime (hr) | 50,000h | |||
| Glow wire test (℃ ) | 750℃ | |||
| Operating Temp. (℃ ) | -20℃～ 40℃ | |||
| Storage Temp. (℃ ) | -20℃～ 65℃ | |||
| Installation | Surface mount | |||
