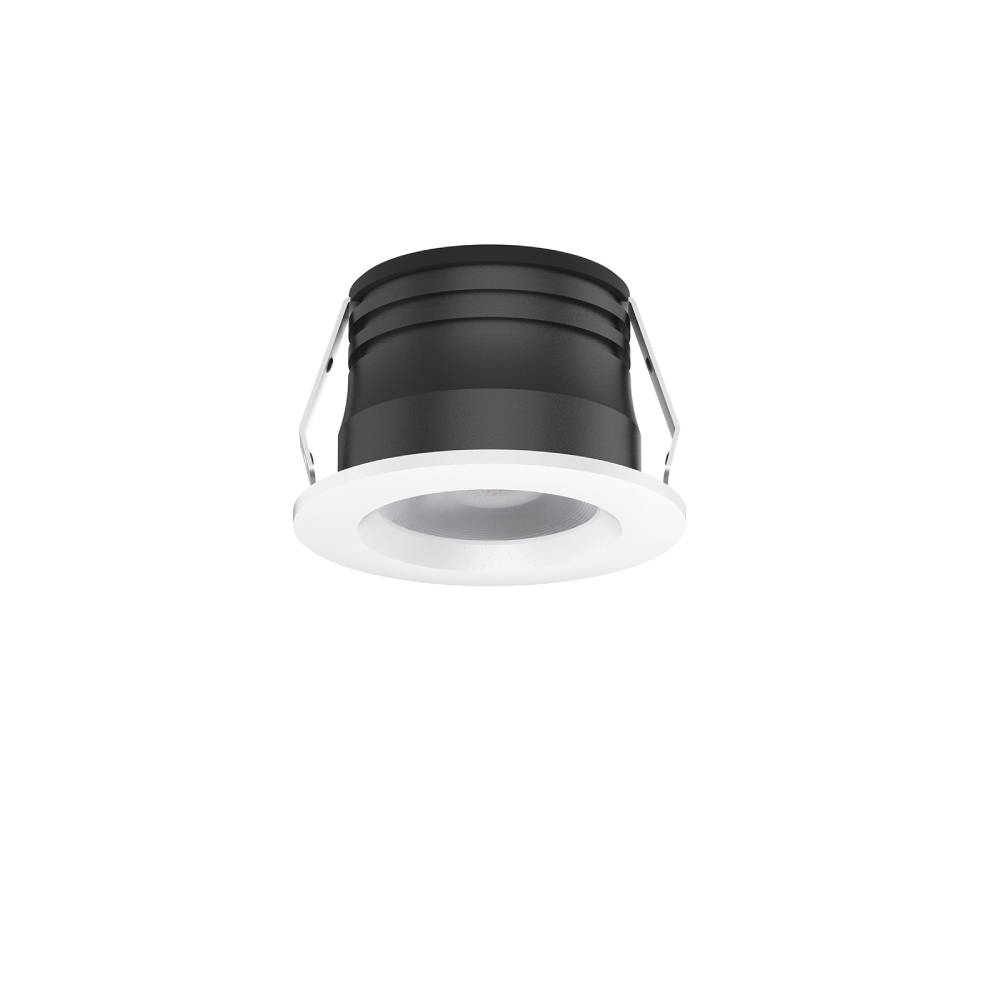

This is a mini and exquisite lamp with a high light transmittance PMMA lens. It has two mini power options:
1. 5W/3W, 1. 5W SMD 3535, 3W COB. Ra90 LED chip makes the objects look more real. AL6063 aluminum housing provides great thermal management. The external driver and quick wire connector make installation and maintenance easier.
LED downlight features:
| Code No. | DL278-1-1.8W | DL278-1.4-3.3W | DL278B-1.4-3W |
|---|---|---|---|
| Dimension(mm) | Ø30*26 | Ø40*26 | |
| Cutout (mm) | Ø25 | Ø35 | |
| Watt(W) | 1.8W | 3.3W | 3W |
| Rated Input Voltage(V) | AC220-240V | ||
| Input Voltage(V) | AC198-264V | ||
| Light Source | SMD | COB | |
| SDCM | <6 | - | |
| CCT(K) | 1-CCT: 2700K/3000K/4000K | 3-CCT: 3000K+4000K+5700K | |
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 70-115 | 220-280 | - |
| CRI | Ra>90 (Ra>80 Optional) | Ra>80 (Ra>90 Optional) | |
| Beam Angle (°) | 20°/36° | 15°/24°/32° | 32° |
| Dimming Option | - | Triac | |
| Electrical Class | Class II | ||
| Ingress Protection (IP Rating) | IP40 | ||
| Impact Resistance (IK Rating) | IK03 | ||
| Product Finishing(Base) | White RAL 9016 / Black RAL9005 | ||
| Materials of Optics | PMMA | ||
| Materials of Housing | 6063 Aluminum | ||
| Lifetime (hr) | 50,000h | ||
| Glow wire test (℃ ) | 650℃ | ||
| Operating Temp. (℃ ) | -20℃ ~45℃ | ||
| Storage Temp. (℃ ) | -20℃ ~65℃ | ||
| Installation | Recessed mounted | ||
