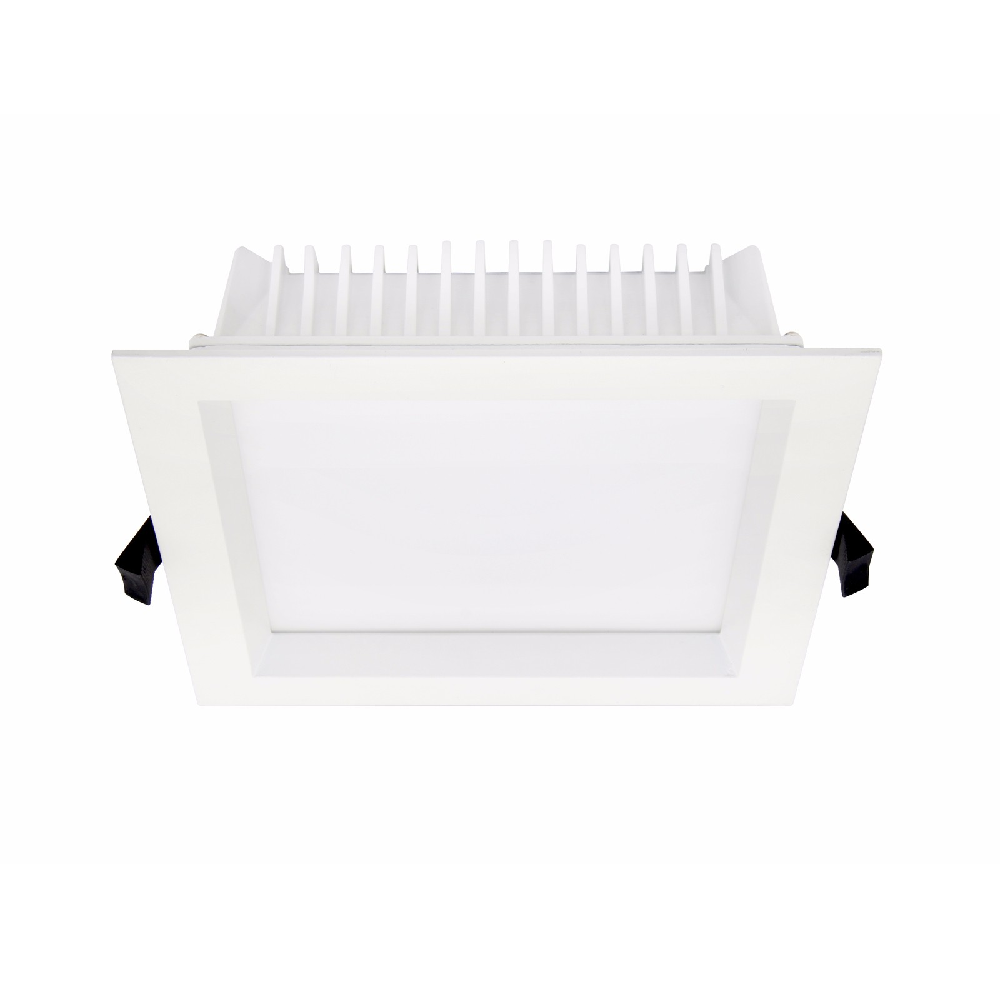

SMD LED Down light adopts high lumen SMD LED, PMMA diffuser with even light output. White, silver, chrome surface treatment available for different applications. Triac dimmable, 0-10V dimmable and DALI dimmable version shares great popularity by the excellent dimming effect.
Application: Suitable for commercial and residential applications like office, supermarket, shop, school, hotel, restaurant, workshop, warehouse, home etc.
| Code | LEDChip | Wattage | BeamAngle | CCT | Lumens | Dimension | Download |
| UP-DL34-3-13W | SMD | 13W | 90° | 2700K,3000K,4000K,5000K | 920-950lm | 110*110*44mm cutout 90-100mm | Specification |
| UP-DL34-6-25W | SMD | 25W | 90° | 2700K,3000K,4000K,5000K | 1800-1850lm | 190*190*54mm cutout 160-170mm | Specification |
