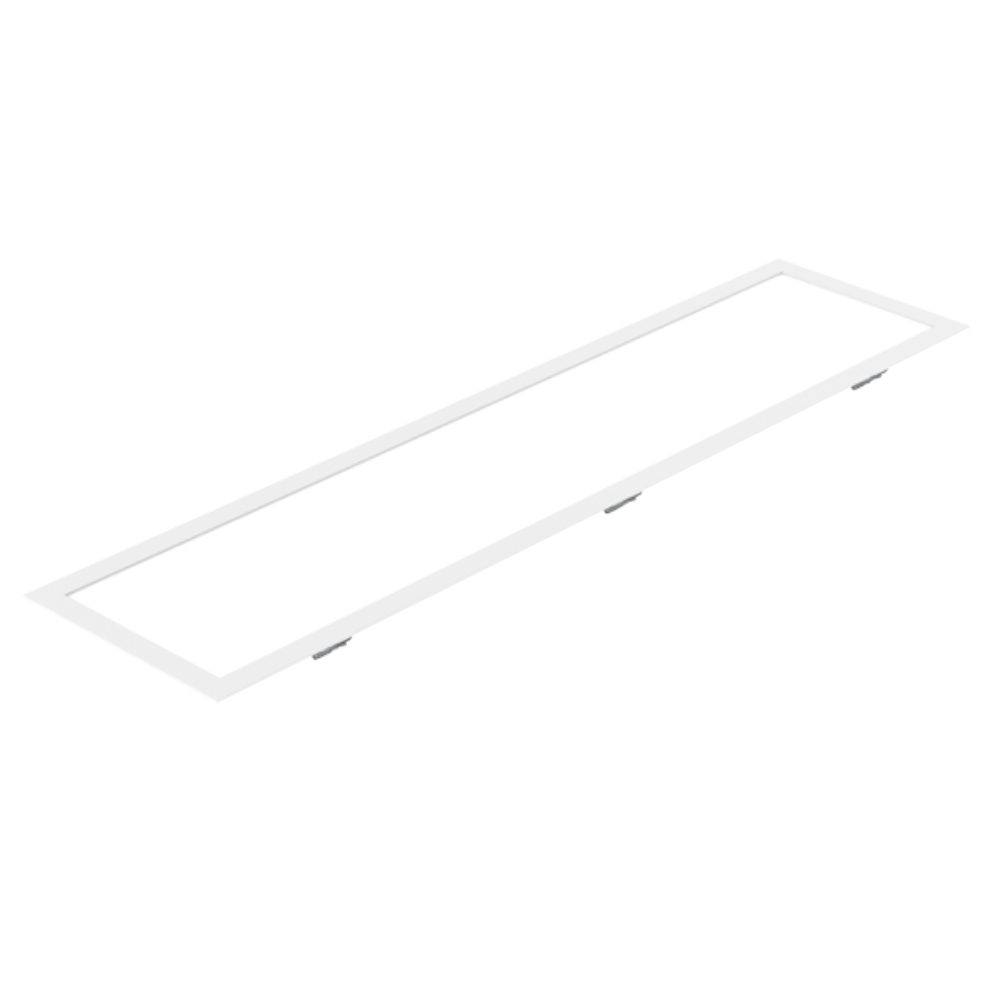

PL-CD panel light adopts high-lumen LED chips with CRI>80, special frame design provides excellent thermal management. Recessed installation with clips makes it suitable for more kinds of ceilings.
Surface-mounted panel light features
| Model No. | PL6060-33W-CD | PL30120-33W-CD | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Watt(W) | 33W | 33W | |||||||||
| Dimension(mm) | 595*595 | 1195*295 | |||||||||
| Cutout (mm) | 585*585mm | 585*1185mm | |||||||||
| Rated Input Voltage(V) | AC230V | AC230V | |||||||||
| Input Voltage(V) | AC220-240V | AC220-240V | |||||||||
| LED | SMD | ||||||||||
| SDCM | ＜6 | ||||||||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K | ||||||||||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% |
3080-3460LM | 3010-3400LM | |||||||||
| CRI | ＞80 | ||||||||||
| Beam Angle (°) | 120° | ||||||||||
| UGR | ＜22 | ||||||||||
| LED Driver | Built-out | ||||||||||
| DIM | Triac | ||||||||||
| Protection Class | Class I I | ||||||||||
| IP Rating | IP40 | ||||||||||
| IK Rating | IK06 | ||||||||||
| Finishing color | White RAL 9016 | ||||||||||
| Material | PC/Aluminium | ||||||||||
| Lifetime (hr) | 40000H | ||||||||||
| Glow wire test (°C) | 750° | ||||||||||
| Operating Temp.(°C) | -20-45℃ | ||||||||||
| Storage Temp.(°C) | -20-60℃ | ||||||||||
| Installation | Surface mount | ||||||||||
