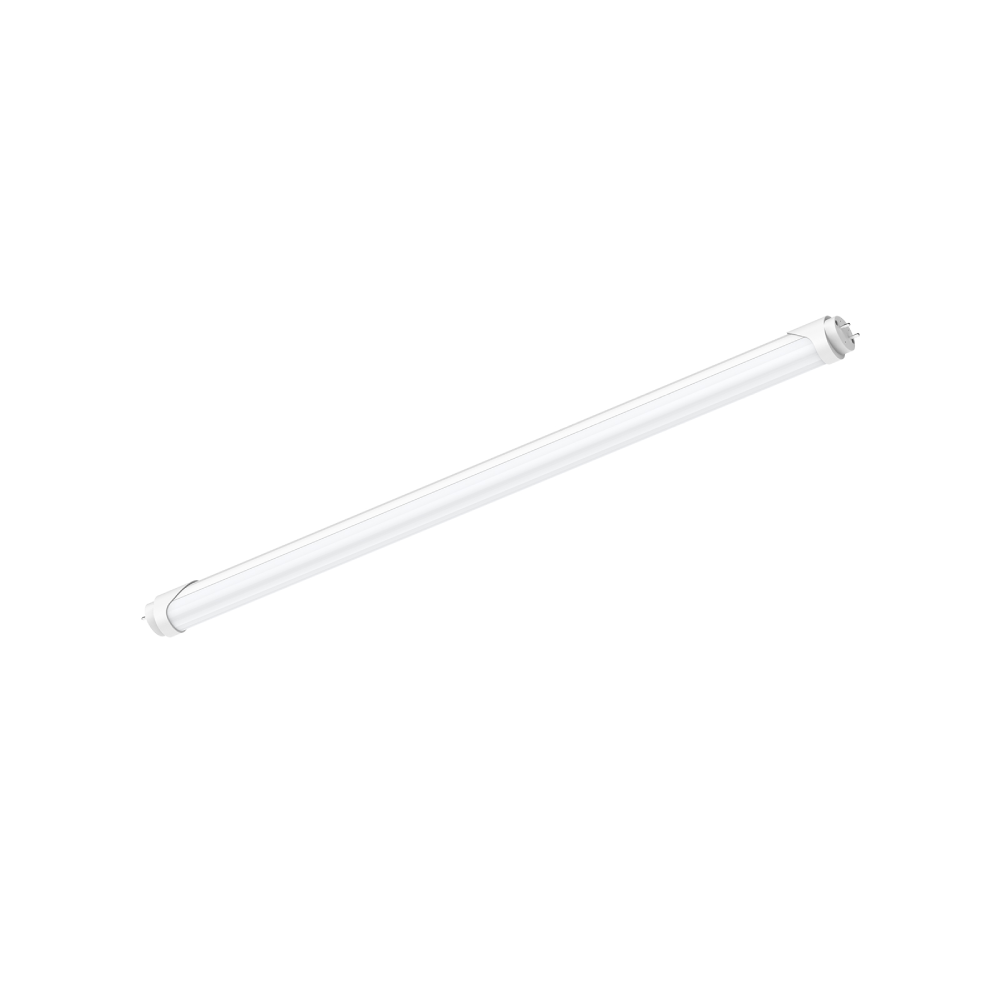

This is an integrated T8 tube. It adopts a 2835 SMD light source and CRI>80, combined with 94-V2 fire-rated PC shade to ensure a high transmittance and create a uniform light output. Besides, it is PC+Aluminum housing, which can realize high-efficiency lighting and good heat dissipation, with high-cost performance throughout the market.
Application Areas: Suitable for commercial and residential applications like offices, supermarkets, shops, schools, hotels, restaurants, workshops, warehouses, homes, etc.
| Code No | T8-10W-600-S | T8-18W-1200-S |
|---|---|---|
| Dimension(mm) | 603*32*29 | 1213*32*29 |
| Watt(W) | 10W | 18W |
| Rated Input Voltage(V) | AC100-240V | |
| Input Voltage(V) | AC90-265V | |
| LED Module Input | ||
| Light Source | SMD | |
| SDCM | <6 | |
| CCT(K) | 1CCT:3000K/4000K/5000K/5700K | |
| CCT Selection DIP Switch | No | |
| Non-DIM 1-CCT umingus Flux (lm)±5% | 1230-1300 | 2230-2350 |
| CRI | ≥80 | |
| Beam Angle | 120° | |
| ED Driver | Driver built-in | |
| Electrical Class | ClassⅡ | |
| Ingress Protection (IP Rating) | IP20 | |
| Impact Resistance (IK Rating) | ||
| Product Finishing(Base | Silver Oxide | |
| Materials of Optics | PC | |
| Materials of Housing | Aluminium | |
| lifetime(hr | 50,000h | |
| Glow wire test(C) | 750℃ | |
| Operating Temp.(C) | -20°℃~45℃ | |
| Storage Temp.(C) | -20℃~65℃ | |
| Installation | Surface mount/Wall mount | |
