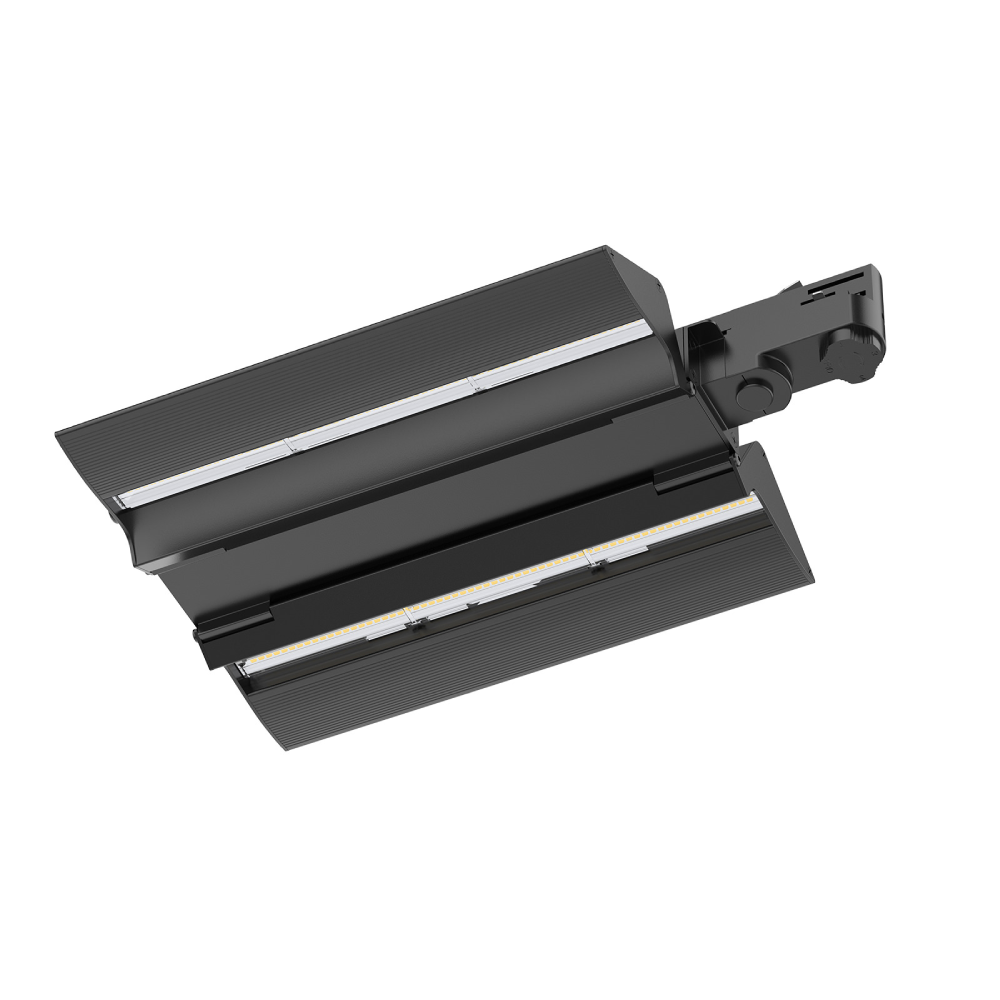

This track light has a unique rectangular light distribution that guides users eyes to the shelf. At the same time, the illumination on the ground will not be too high, which can greatly improve the utilization rate of light and reduce energy consumption. Adopting universal track adaptor, it has a great compatibility with European standard 3-circuit track and convenient for group control. In terms of design, it pursues the perfect unity of shape and function, and adopts two-wing bionic design. The wings can be tilted downward by 30°, which is convenient to adjust the beam angle and meet the requirements of different aisle widths and installation heights.
Application Areas: It is suitable for supermarket, retails store, shelves, corridors etc.
| Code No. | TL115-57W |
|---|---|
| Dimension(mm) | L388*W218*H70mm |
| Watt(W) | 57W |
| Rated Input Voltage(V) | AC 230V |
| Input Voltage(V) | AC 220-240V |
| Light Source | SMD 2835 |
| SDCM | < 6 |
| CCT(K) | 1-CCT: 3000K / 4000K / 5000K / 5700K |
| Non-DIM | 5000-5500 |
| CRI | Ra 80 |
| Beam Angle (°) | 60*90° / 90*110° |
| LED Driver | Built-in |
| Electrical Class | Class I |
| Ingress Protection (IP Rating) | IP20 |
| Product Finishing(Base) | Black RAL9005 |
| Materials of Optics | PC |
| Materials of Housing | Aluminium |
| Lifetime (hr) | 50,000H |
| Glow wire test (C ) | 750°C |
| Operating Temp. (C ) | -20°C~45°C |
| Storage Temp. (C ) | -20°C~65°C |
| Installation | Track |
