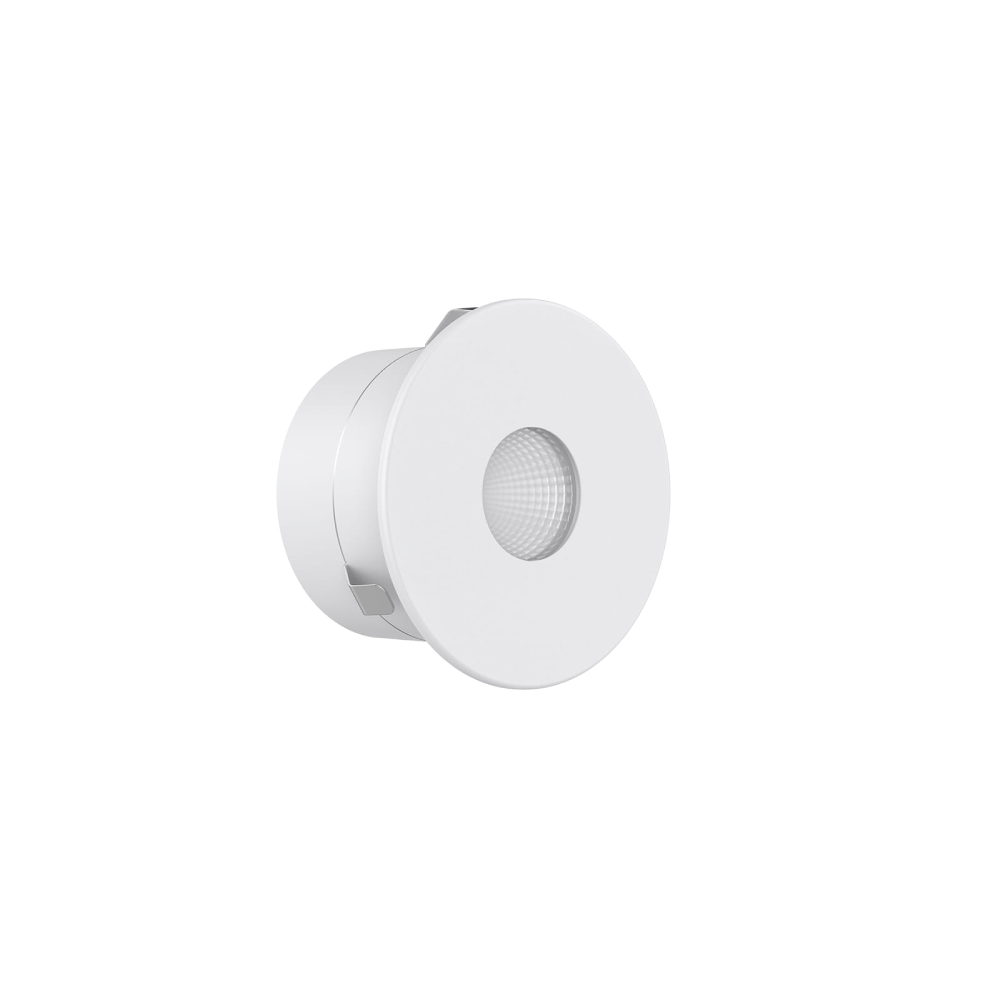

This step light is a series design, two kinds of lamp body with 3 different trims for each which can carry out multitasking in different applications. For the lamp body, has a smooth surface, IP54 waterproof, direct lighting version, and a 30-degree tilted lighting version for options, DC24V and AC220V driver solutions can fit more demand. The lamp has magnetic power for different trims, so it can save SKU and offer more choices.
Application Areas: It is widely used in corners, corridors, bars, stairways, bathrooms, bedrooms, etc.
| Dimension(mm) | Ø54*H31 | |
|---|---|---|
| Cutout (mm) | Ø45 | |
| Watt(W) | 3W | |
| Rated Input Voltage(V) | DC12V | |
| Input Voltage(V) | DC12V | |
| LED Module Input | DC3V | |
| Light Source | SMD | |
| SDCM | <6 | |
| CCT(K) | 1-CCT: 2700/3000K/4000K/5000K | |
| Non-DIM Luminous Flux Round (lm) ±5% | 170-220 | 160-200 |
| Non-DIM Luminous Flux Semi-round (lm) ±5% | 95-130 | 85-90 |
| Non-DIM Luminous Flux Strip (lm) ±5% | 65-80 | 65-80 |
| CRI | 90 | |
| Beam Angle (°) | 30°/Asymmetric 30° | |
| LED Driver | Driver built-out | |
| Electrical Class | Class Ⅲ | |
| Ingress Protection(IP Rating) | IP54(Below Ceiling), IP20(Inside Ceiling) | |
| Product Finishing | White RAL9016; Black RAL9005 | |
| Optics Material | PC | |
| Housing Material | Aluminium | |
| Lifetime (hr) | 50,000h | |
| Glow wire test (°C) | 750°C | |
| Operating Temp.(°C) | -20°C~45°C | |
| Storage Temp.(°C) | -20°C~65°C | |
| Installation | Recessed | |
