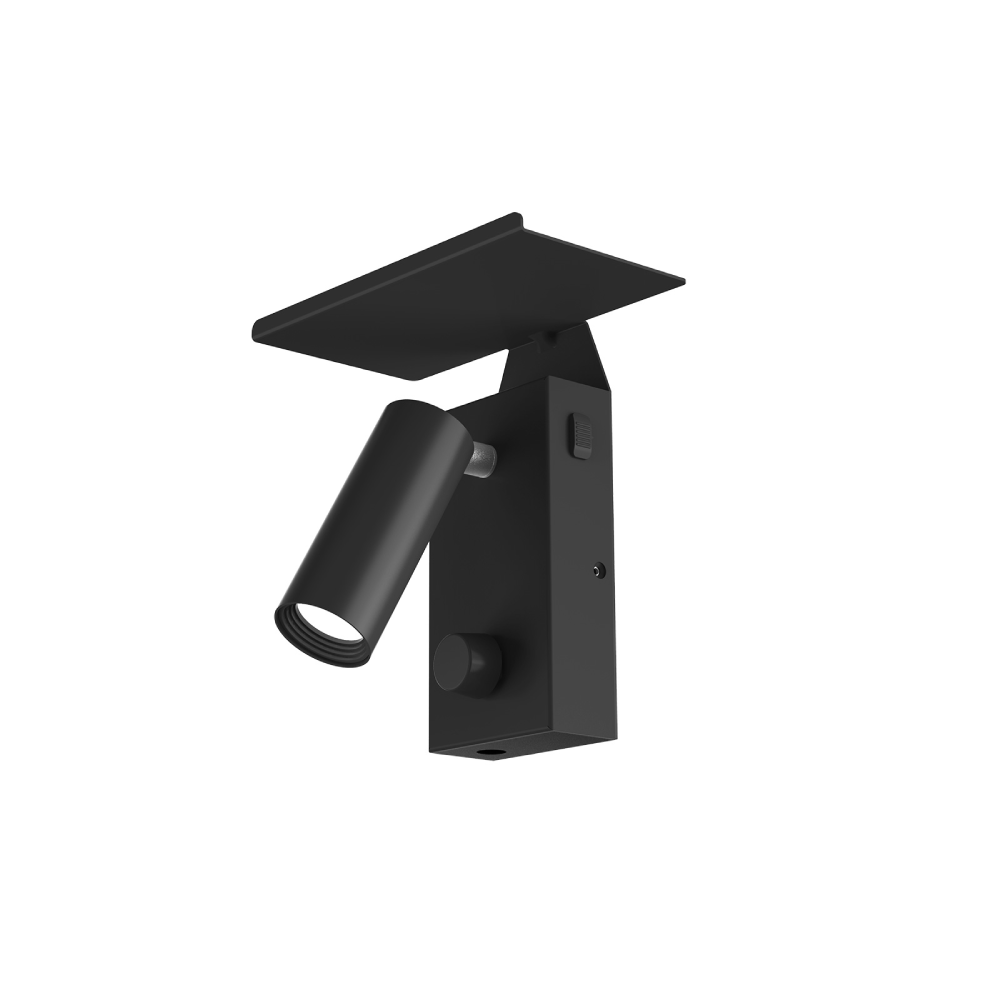

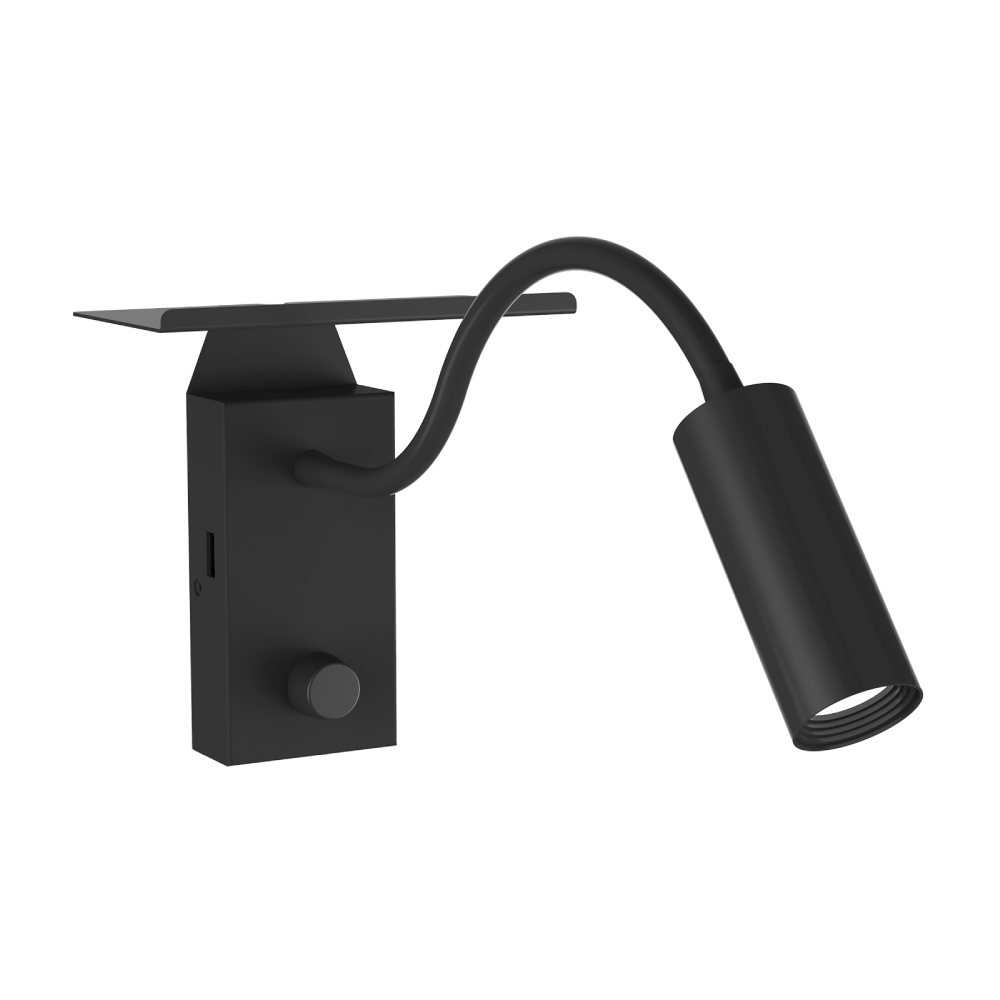

WL69 is a bedside lamp with compact design and switch knob dimming. It adopts SMD led chip with special lens which make a comfortable visual experience. It has two types, type A with gyro structure design, type B with an elbow pipe design. Both versionss have an external 12V 1.5A adapter with USB charging function. Two easy wall mounting ways, option 1: Lock the lamp from ends with screws into the bracket. Option 2: Install the bracket(with mobile phone shelf ) into the wall, the lamp can be directly inserted into the bracket.
Wall mounted light features:
| Code No. | WL69A-5W-D | WL69B-5W-D | ||
| Dimension(mm) | 161*150*81mm | 161*150*341mm | ||
| Cutout (mm) | - | |||
| Watt(W) | 22.5W(USB 5V 1.5A Illumination9V, 0.38A) | |||
| Rated Input Voltage(V) | 230V | |||
| Input Voltage(V) | AC220-240V | |||
| LED Module Input | 9V | |||
| Light Source | SMD2835 | |||
| SDCM | <6 | |||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K | |||
| CCT Selection DIP Switch | - | |||
| Luminous Flux (lm) ±5% | Non-DIM | 1-CCT | - | |
| DIM | 350-420LM | |||
| Non-DIM | 3-CCT | - | ||
| DIM | - | |||
| CRI | 80 | |||
| Beam Angle (°) | 36° | |||
| UGR | - | |||
| LED Driver | adapter | |||
| Dimming Option | - | |||
| Sensor | NO | |||
| Emergency Kits | NO | |||
| Electrical Class | Class Ⅱ | |||
| Ingress Protection (IP Rating) | IP20 | |||
| Impact Resistance (IK Rating) | IK06 | |||
| Product Finishing(Base) | White RAL 9016/Black RAL 9005 | |||
| Materials of Optics | PC | |||
| Materials of Housing | Iron+PC | |||
| Lifetime (hr) | L 70B50 50000hr | |||
| Glow wire test (℃) | 750℃ | |||
| Operating Temp. (℃) | -20℃~45℃ | |||
| Storage Temp. (℃) | -20℃~65℃ | |||
| Installation | Wall mounted | |||
