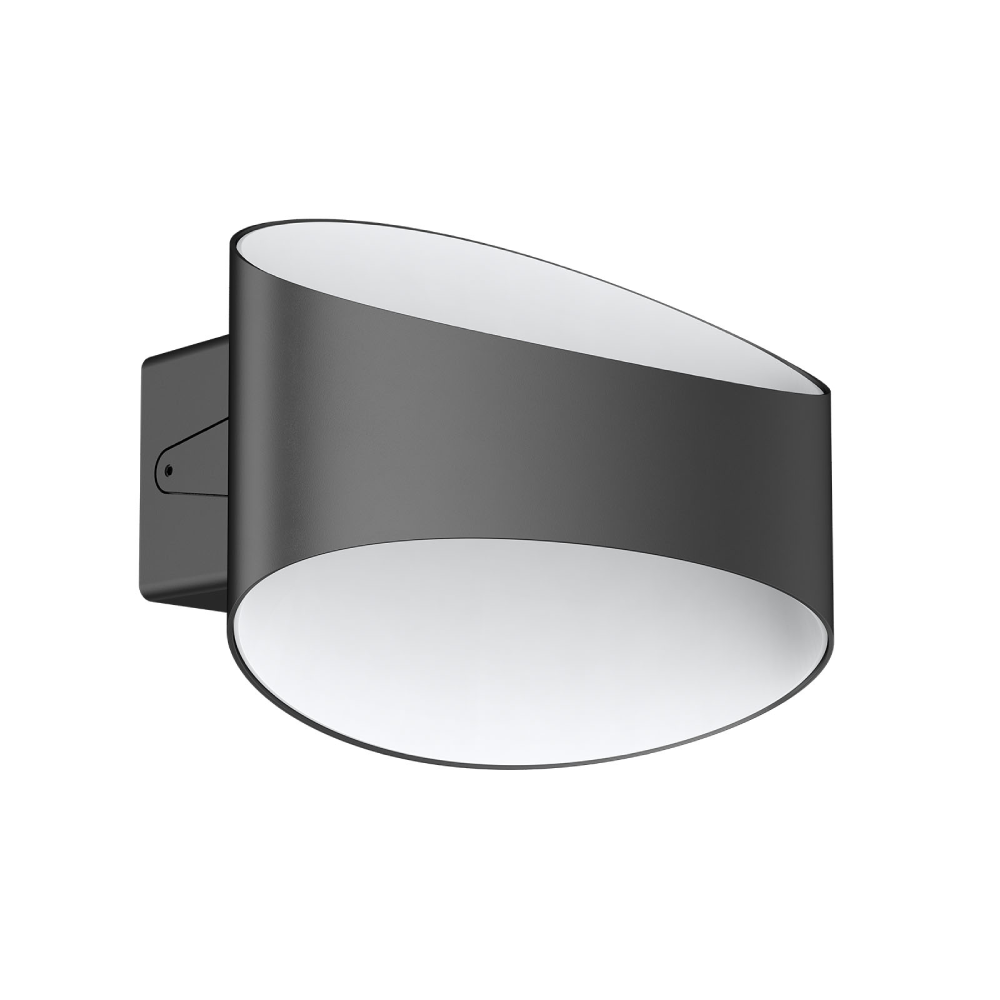

WL95 is an indoor oval shape wall lamp. It adopts a high-lumen SMD light source, up & down lighting design makes a soft and uniform lighting output. ADC12 aluminum housing offers great thermal management. PC reflectors can be customized in different colors(The standard color is white).
Application Areas: It is designed for private lighting applications in the living room, corridor, stairway, bedroom, etc.
|
Code No. |
WL95-8W-C2 |
WL95-8W-P2 |
||
|---|---|---|---|---|
|
Dimension(mm) |
200*140*107 |
|||
|
Watt(W) |
8W |
|||
|
Rated Input Voltage(V) |
110V/230V |
230V |
||
|
Input Voltage(V) |
100-240V |
220-240V |
||
|
LED |
SMD |
|||
|
SDCM |
SDCM≤6 |
|||
|
CCT(K) |
2CCT: 3000K+4000K
|
|||
|
CCT Selection DIP Switch |
YES |
|||
|
Luminous Flux (lm) ±5% |
Non-DIM |
1-CCT |
- |
- |
|
DIM |
||||
|
Non-DIM |
2-CCT |
380-435 |
- |
|
|
DIM |
- |
370-425 |
||
|
CRI |
80 |
|||
|
Beam Angle (°) |
360° |
|||
|
LED Driver |
Built-in |
|||
|
DIM |
yes |
|||
|
Protection Class |
Class II |
|||
|
IP Rating |
IP20 |
|||
|
IK Rating |
IK06 |
|||
|
Product Finishing |
Black RAL9005 |
|||
|
Optics Material |
PC |
|||
|
Material |
Aluminium |
|||
|
Lifetime (hr) |
50,000h |
|||
|
Glow wire test (℃ ) |
850℃ |
|||
|
Operating Temp. (℃ ) |
-20℃ ~45℃ |
|||
|
Storage Temp. (℃ ) |
-20℃ ~65℃ |
|||
|
Installation |
Wall mount |
|||
